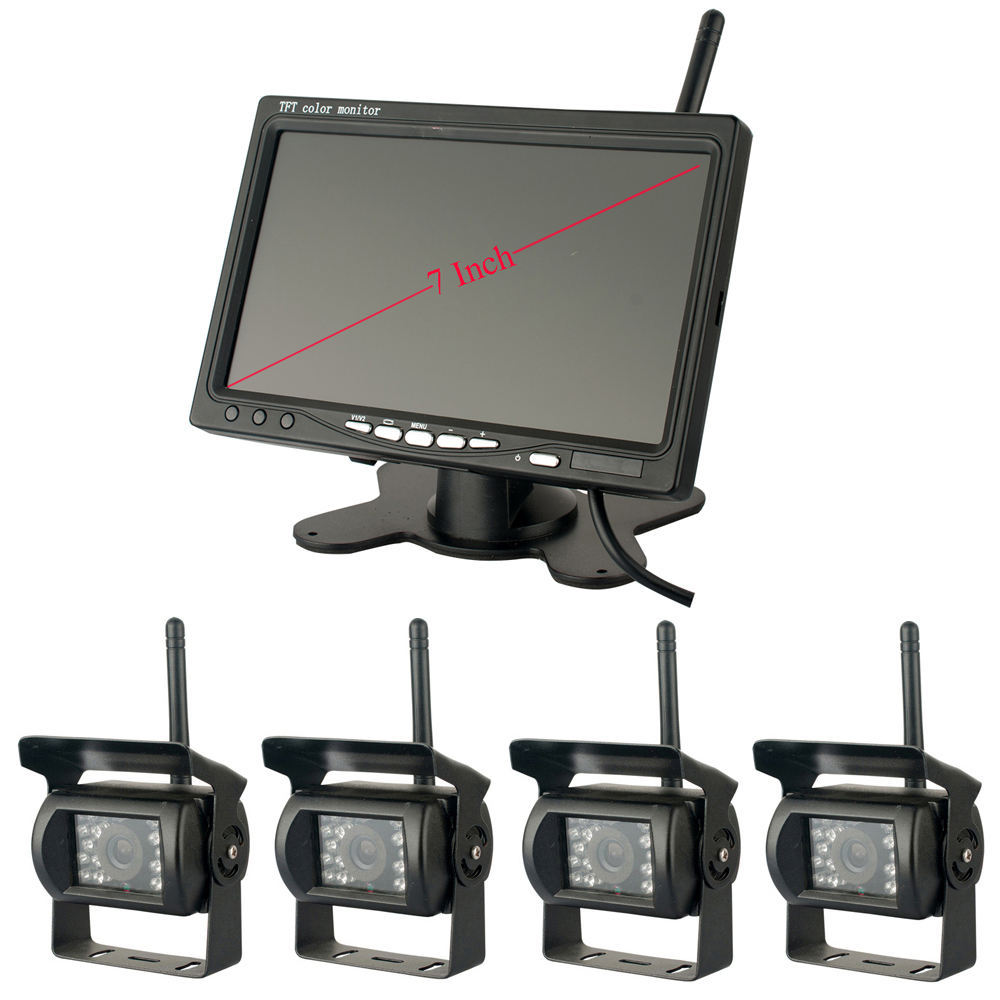

usbai 7-inch wireless reversing image one drag four wireless monitoring bus rear view camera wireless display

Product parameters:

Camera;
photosensitive chip: 7070D
lens material: metal four glass 850 infrared lens
lens angle: horizontal angle 120° vertical angle 90° diagonal 170°
working voltage: 12v-24V
signal format: CVBS
resolution: 640(H)*480( H)
Power interface: AV head
Video interface: lotus head/aviation head
Shell material: metal
Working temperature: (-30°C-70°C)
Storage temperature: (-40°C-70°C)
Power cord: 1 meter
Video cable: default 6 meters / can be customized
Waterproof level: IP67/68
Light board specification: 850 infrared night vision light board / LED white light optional
mirror image / positive image: default mirror image / customizable
system: default P system / customizable
Reference line: default with ruler/customizable

Display;
Size: 7 inches
Resolution: 800*480
Aspect Ratio: 16:9
Brightness: 350/M2
Contrast: 300
Ratio Switching: 16:9/4:3
Viewing Angle: 70/70/60/60
Remote Control: Infrared remote
control signal system: PAL / NTSC automatic detection
Signal amplitude: 0.7-2.0 V pp
Working voltage: DC 24V
Working current: 1A
Power-on start-up time: <1.5s
Working temperature (humidity <80% RH): -20℃~ 70°C
storage temperature (humidity <80% RH): -30°C~70°C

Transmission distance: 50 meters

Package: color box, monitor, monitor deck, antenna, power cord, screws
